Model strategy where your code lives.

Draw on a canvas, commit plain text.

Wardley Maps, Event Storming, Team Topologies, Context Maps and Value Chains as text files, edited on a canvas in VS Code, in the browser or in your own app.

$ code --install-extension miragon-gmbh.miragon-modeler-collection

The Miragon Modeler Collection, with BPMN and Domain Storytelling. Each modeler also installs on its own, see its page.

Pick a modeler and open its example

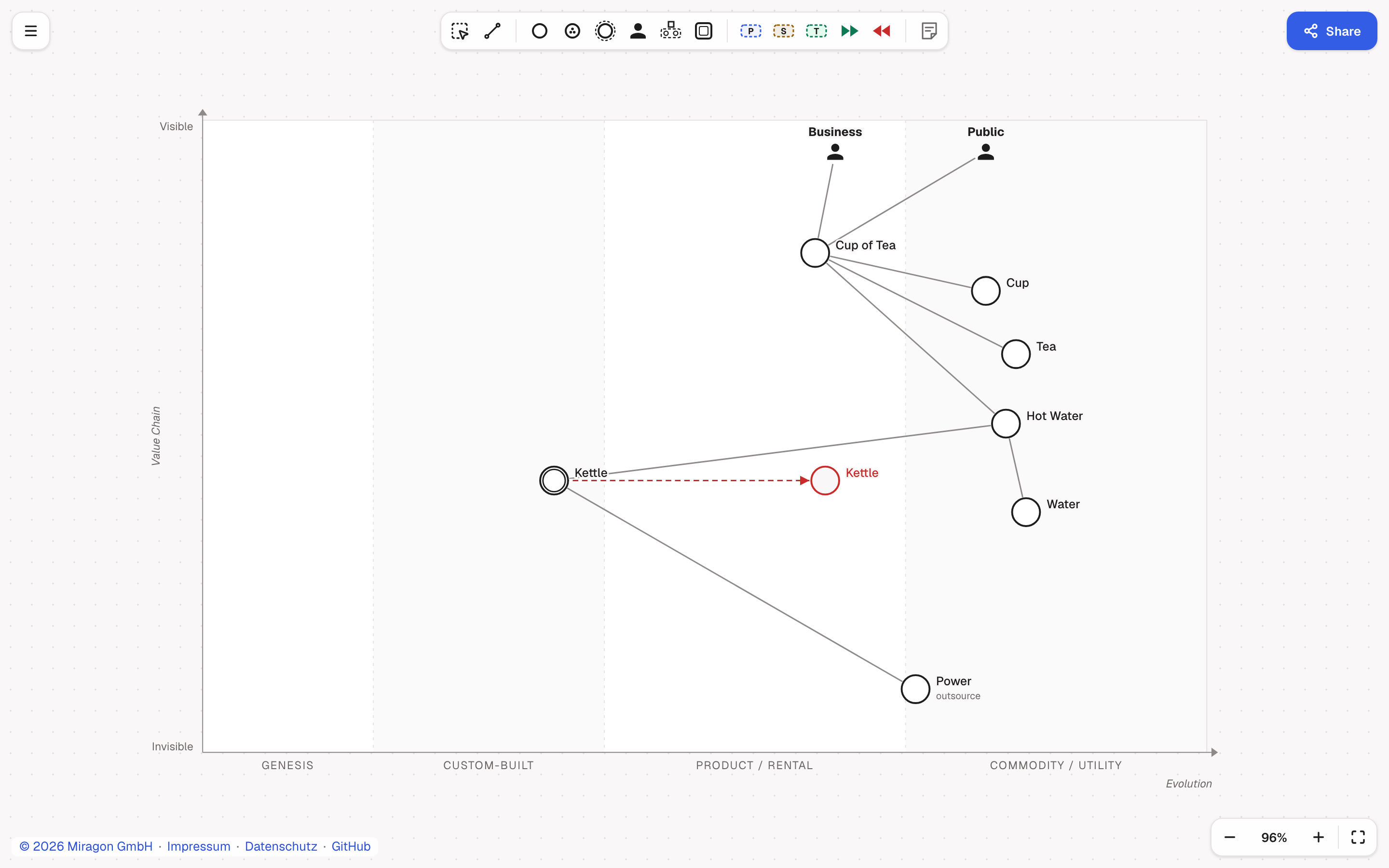

tea.owm · Wardley Maps
The Wardley Maps modeler with its example

  1. Wardley Maps

    .wmap .owm

    Components on the value chain, evolved by drag.

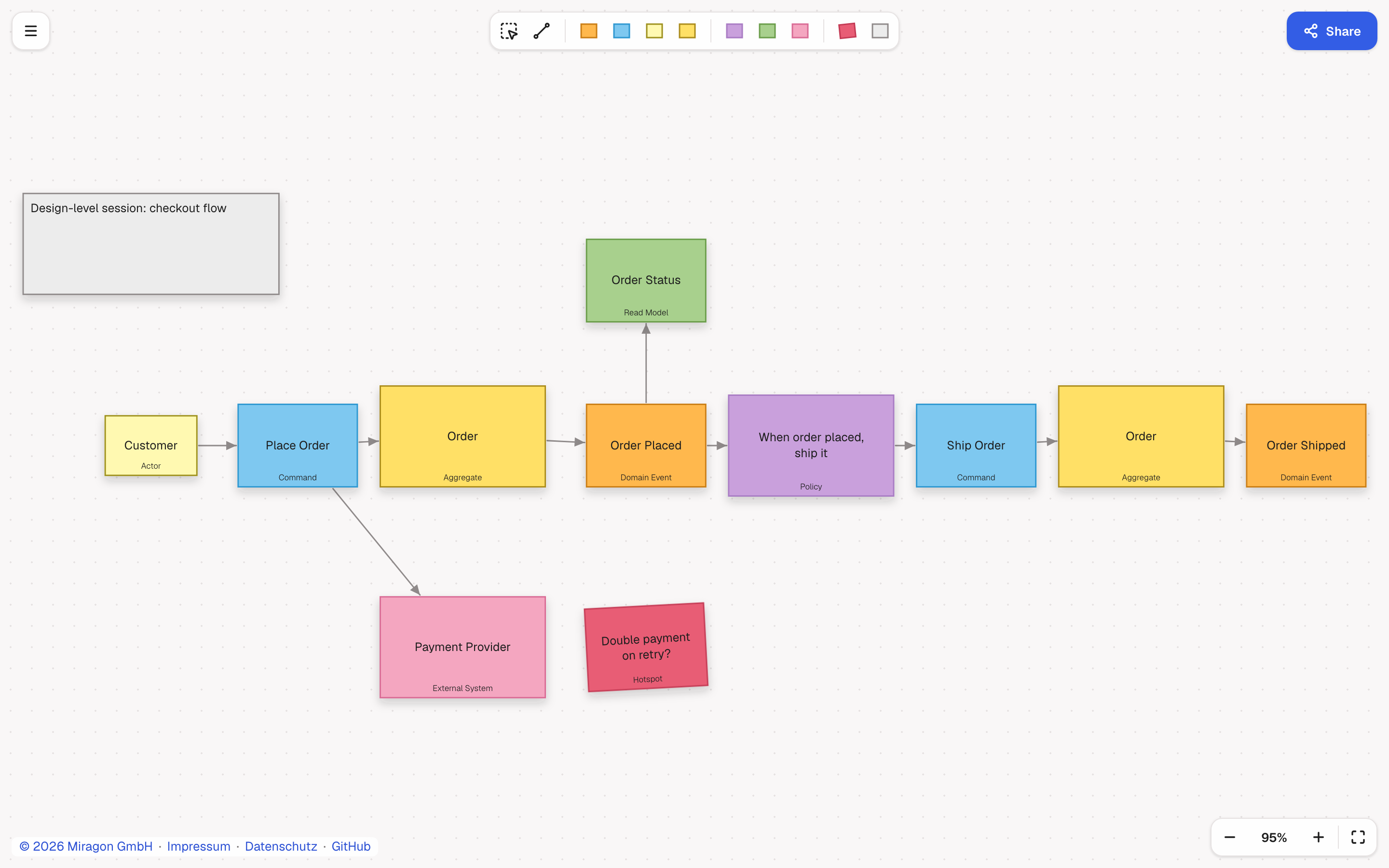

  2. Event Storming

    .storm

    Stickies on a timeline, one per line of text.

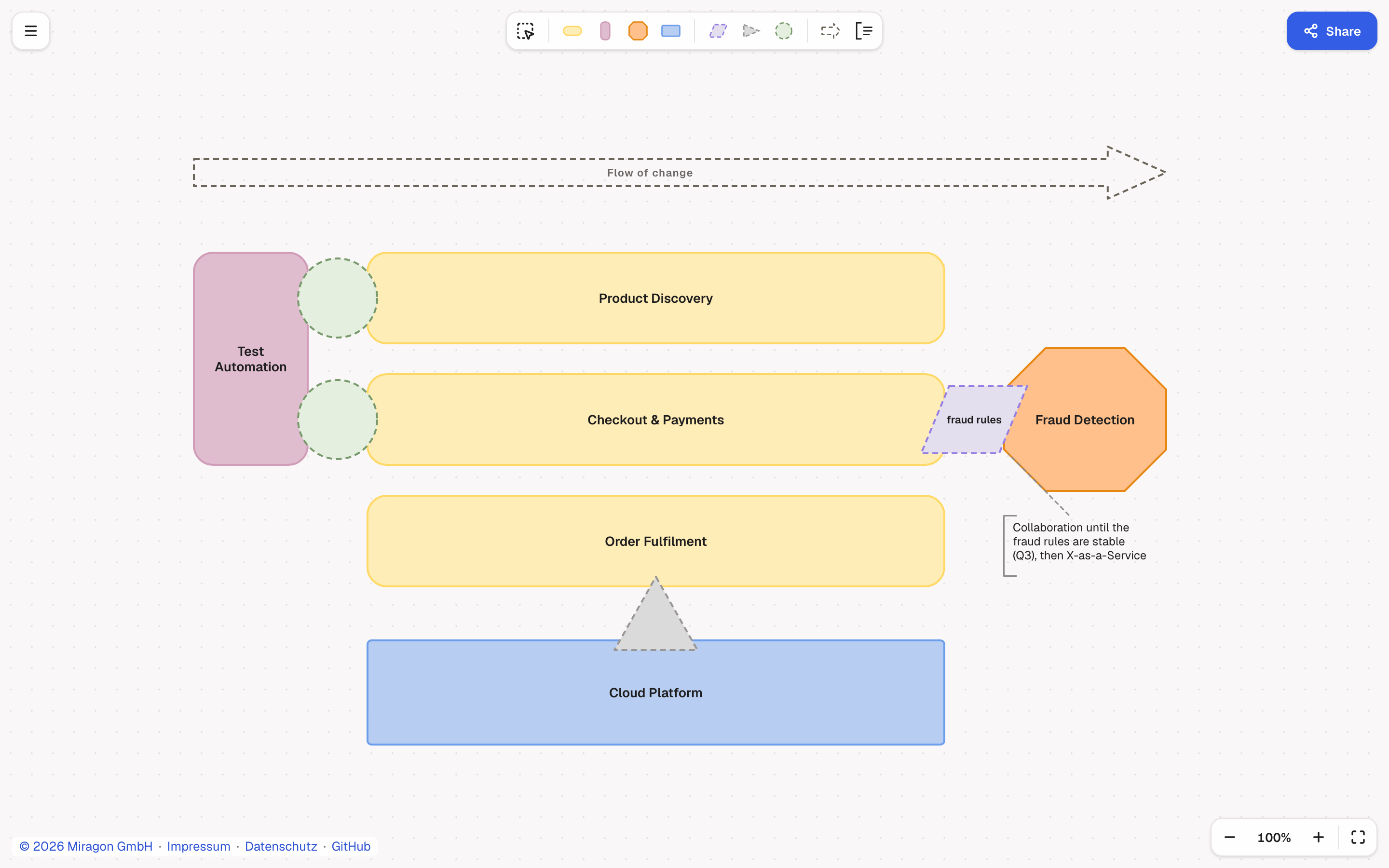

  3. Team Topologies

    .tt .ttm.json

    Four team types and three interaction modes.

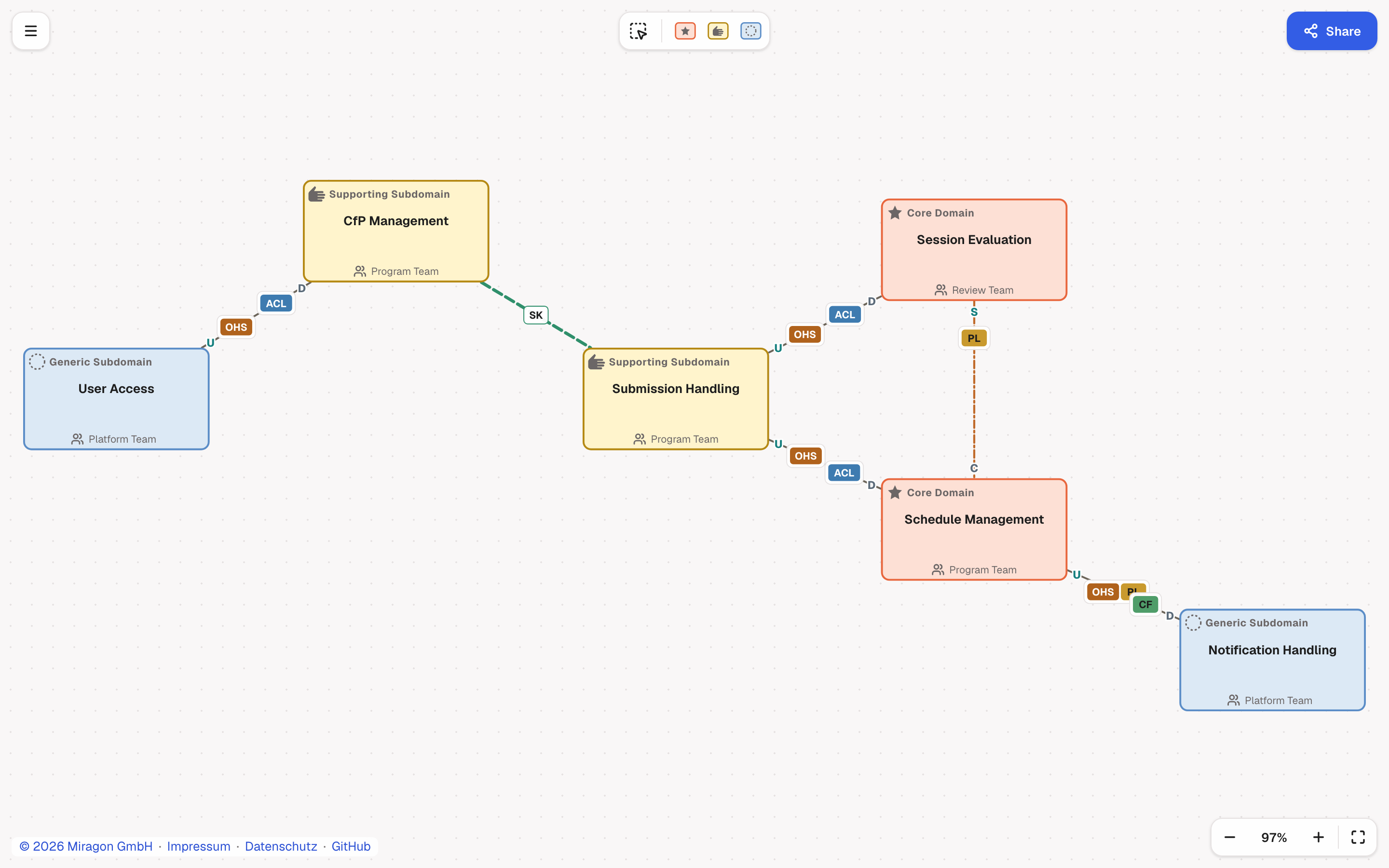

  4. Context Maps

    .cm .cml

    Bounded contexts and their relationship patterns.

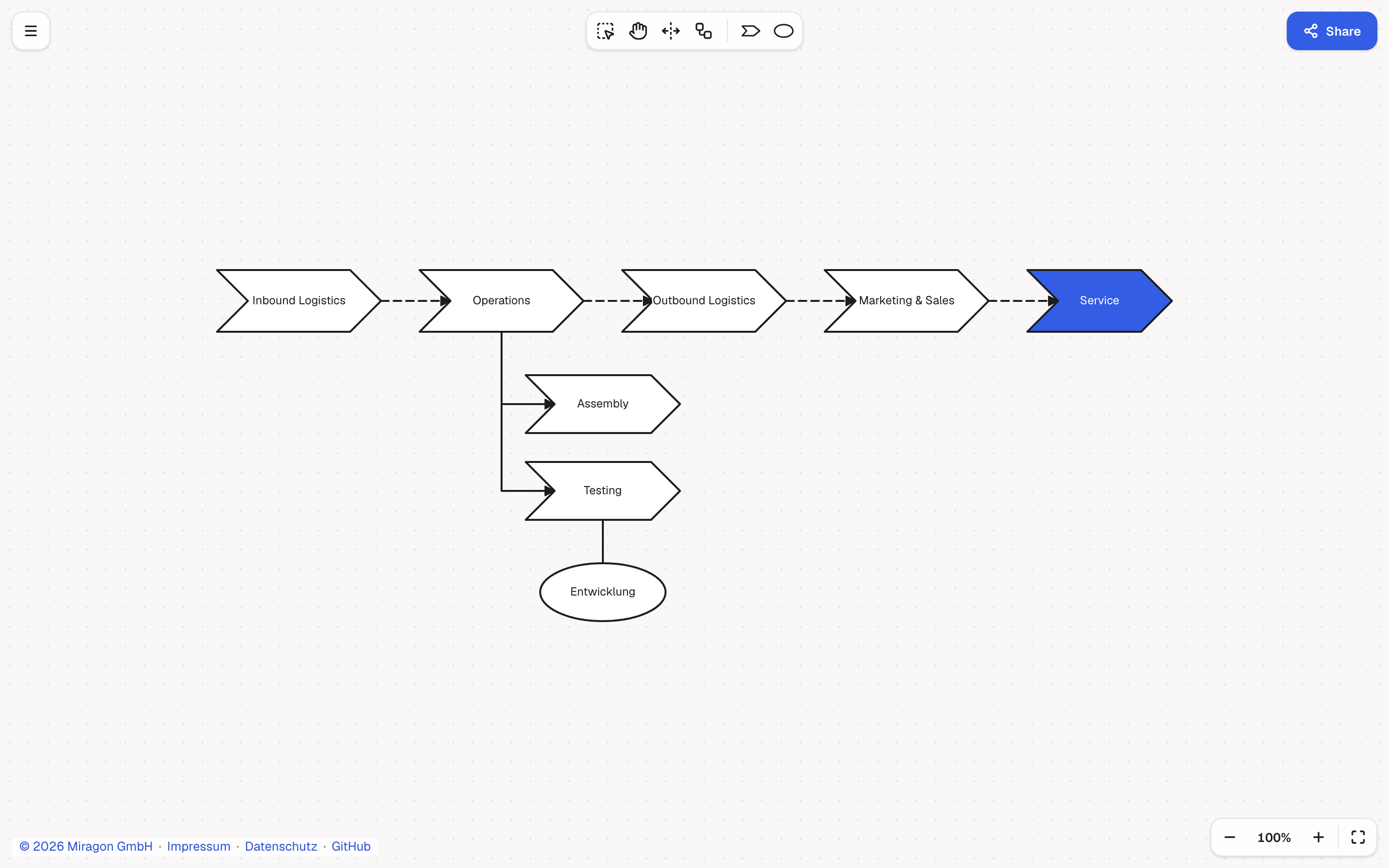

  5. Value Chain

    .vc

    Steps and the organizational units behind them.
