Append Menu ​

The BPMN Modeler extension replaces the default popup menu from the bpmn-js-create-append-anything plugin with a custom two-panel UI. It combines element templates and standard BPMN elements in a single, positioned panel anchored to the context pad or palette toolbar.

Usage ​

  1. Select a BPMN element on the canvas (e.g. a Service Task).
  2. In the context pad, click the three-dot button labelled Append element.

Service Task selected with context pad showing the Append element button

  1. The append menu opens near the context pad, showing element templates on the left and BPMN elements on the right.

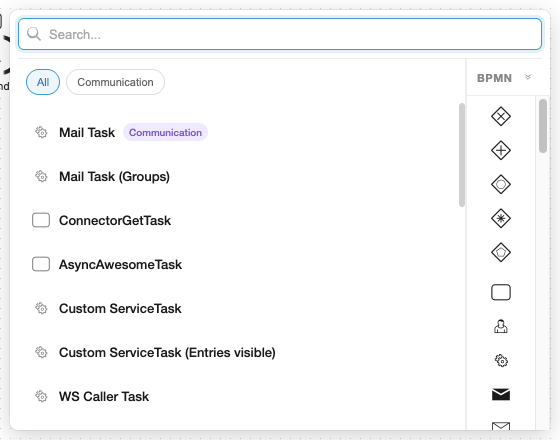

Append menu panel showing templates on the left and a compact BPMN element palette on the right

  1. Hover over a template to see implementation details and property count.

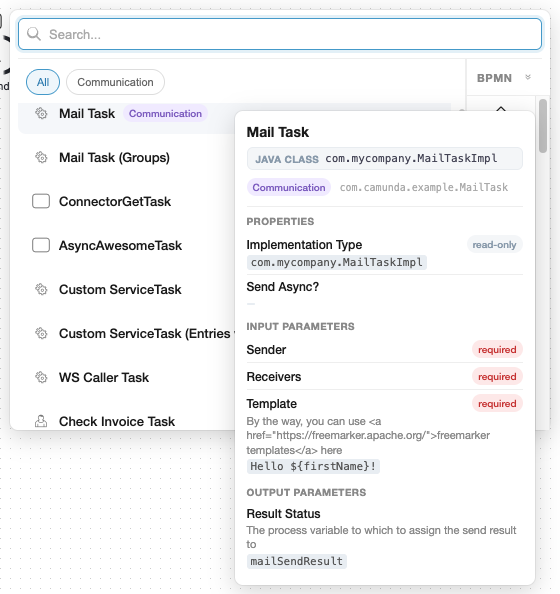

Mail Task template card expanded on hover, showing Java Class binding and 6 properties

  1. Click a template to append it as a preconfigured element, or click a BPMN element icon on the right to add a plain element.

UI Overview ​

The menu is a positioned panel (no backdrop blur) that appears next to the trigger point. It consists of:

AreaDescription
Search barShared across both panels. Filters templates by name, description, keywords, category, and appliesTo types. Also filters BPMN elements by label.
Category chipsDerived from the category field of loaded templates. Click a chip to filter; click again (or "All") to reset.
Template list (left)Scrollable list of matching templates. Each card shows a BPMN type icon, name, and optional category badge. Hovering expands the card to reveal implementation detail and property count.
BPMN palette (right)Collapsible palette of standard BPMN elements grouped by category (Gateways, Tasks, Sub-processes, Events, Data). Defaults to icon-only mode; click the expand chevron to show labels.
Favourites (right, top)Optional pinned section at the top of the palette for frequently used BPMN elements. Configured via the miragon.bpmnModeler.favouriteBpmnElements setting.

Collapsed vs Expanded Palette ​

By default, the BPMN palette shows only icons to keep the panel compact. Click the chevron next to "BPMN" to expand it and reveal category headings and element labels.

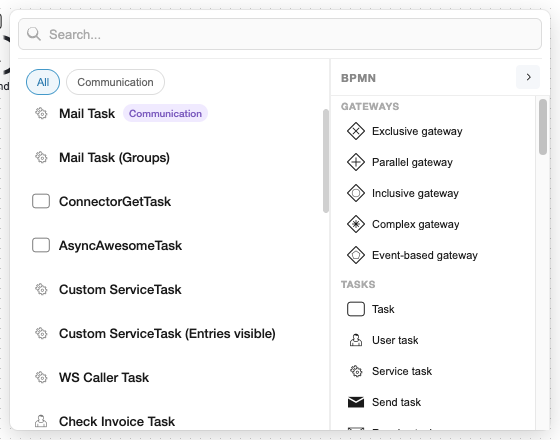

Expanded BPMN palette showing Gateways and Tasks categories with icons and labels

Keyboard Navigation ​

KeyAction
Arrow Down / Arrow UpMove focus through the template list
EnterApply the focused template
EscapeClose the menu without applying

Clicking anywhere outside the panel also closes it.

The search bar filters both panels simultaneously:

  • Templates: matched against name, description, keywords, category name, and appliesTo type labels.
  • BPMN elements: matched against label and description. Non-matching elements are hidden, and empty groups are removed.

Searching for a BPMN type name (e.g. "service task") shows all templates that apply to that type, even if their name doesn't contain the search term.

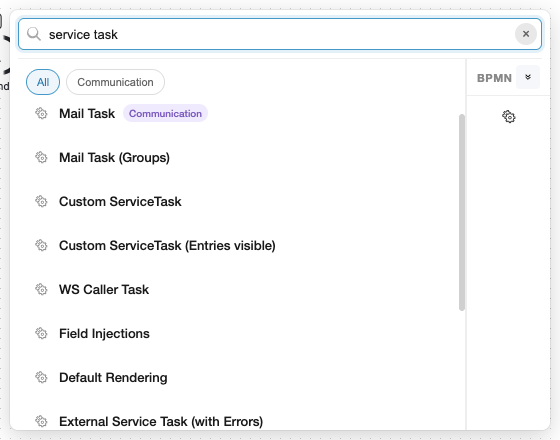

Search for "service task" filtering both templates and BPMN elements

Template Interaction ​

Single-Type Templates ​

Templates that apply to exactly one BPMN type (e.g. "appliesTo": ["bpmn:ServiceTask"]) are applied immediately on click. The menu closes and a new element with the template preconfigured is appended to the canvas.

Multi-Type Templates ​

Templates that apply to multiple types (e.g. "appliesTo": ["bpmn:ServiceTask", "bpmn:CallActivity"]) enter a selection mode on click:

  1. The template card is highlighted.
  2. The BPMN palette filters to show only the matching element types (non-matching elements are disabled).
  3. Click the desired type in the palette to create the element with the template applied.

Clicking a different template automatically updates the selection.

Template Card Details ​

Each template card shows:

  • BPMN type icon (left) — derived from appliesTo[0] for single-type templates, or a generic task icon for multi-type templates.
  • Name — the template's display name.
  • Category badge — shown when the template has a category field.
  • Template icon (right) — the custom icon from the template's icon.contents field, if present.

On hover, the card expands to reveal:

  • Implementation detail — the primary binding (Java Class, Delegate, Topic, etc.) with its value.
  • Property count — number of visible (non-hidden) properties.
  • Documentation link — if documentationRef is set.

Favourite BPMN Elements ​

You can pin up to 6 frequently used BPMN elements at the top of the palette by configuring the miragon.bpmnModeler.favouriteBpmnElements setting:

json
"miragon.bpmnModeler.favouriteBpmnElements": [
    "bpmn:ServiceTask",
    "bpmn:UserTask",
    "bpmn:CallActivity",
    "bpmn:ExclusiveGateway"
]

Favourites appear in a separate "Favourites" section above the regular BPMN element groups, separated by a divider line. They are subject to the same search filtering and appliesTo filtering as regular entries.

For implementation details, see Contributing → Append Menu internals.
